How Do You Check An Alternator With A Multimeter

Ever found yourself stranded with a dead battery, only to realize the alternator might be the real culprit? It’s a common scenario, and knowing how to check an alternator with a multimeter can save you time, money, and frustration. I’ve been there—standing in my driveway, multimeter in hand, trying to diagnose why my car’s electrical system was acting up. In my experience, a multimeter is one of the most reliable tools for testing alternator performance. It’s not just about checking voltage; it’s about understanding what those readings mean. So, how do you check an alternator with a multimeter? Let’s break it down step by step, with practical insights from someone who’s done it more times than I can count.

Table of Contents

Understanding the Basics: What Does an Alternator Do?

Before diving into the testing process, it’s crucial to understand the alternator’s role. The alternator is responsible for charging your car’s battery and powering the electrical system while the engine is running. If it fails, your battery will drain, and your vehicle will eventually stall. Checking the alternator with a multimeter helps you determine if it’s functioning correctly or if it’s time for a replacement.

Tools You’ll Need

To check an alternator with a multimeter, you’ll need a few essential tools:

A digital multimeter (DMM)
Safety gloves and goggles
A fully charged battery (for accurate testing)

⚠️ Note: Always ensure the engine is off before connecting the multimeter to avoid electrical shocks or damage to the device.

Step-by-Step Guide: How to Check an Alternator with a Multimeter

Here’s a detailed, practical guide to testing your alternator using a multimeter:

1. Prepare Your Vehicle

Start by parking your car on a flat surface, engaging the parking brake, and turning off the engine. Open the hood and locate the battery and alternator. Safety first—wear gloves and goggles to protect yourself from acid leaks or electrical hazards.

2. Set Up Your Multimeter

Set your multimeter to the DC voltage setting, typically marked with a “V” and a dashed line. Ensure the range is set to at least 20 volts to capture the full range of your alternator’s output.

3. Test the Battery Voltage

Before testing the alternator, check the battery voltage. Connect the multimeter’s positive (red) lead to the battery’s positive terminal and the negative (black) lead to the negative terminal. A healthy battery should read around 12.6 volts when the engine is off. If it’s significantly lower, charge the battery before proceeding.

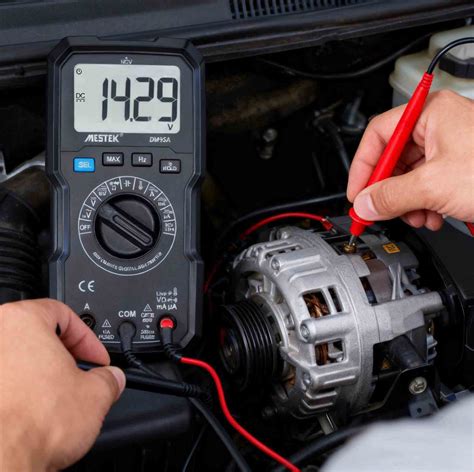

4. Start the Engine and Test the Alternator

With the engine running at idle, reconnect the multimeter to the battery terminals. A functioning alternator should produce a reading between 13.8 and 14.4 volts. If the voltage is below 13.5 volts, the alternator may be underperforming. If it’s above 14.5 volts, it could be overcharging the battery.

💡 Note: Some vehicles may have slightly different voltage ranges, so consult your car’s manual for specific values.

5. Perform a Load Test (Optional)

For a more thorough check, perform a load test. Turn on the headlights, air conditioning, and other electrical accessories while monitoring the multimeter. The voltage should remain stable within the acceptable range. If it drops significantly, the alternator may be struggling under load.

Common Mistakes to Avoid

When checking an alternator with a multimeter, avoid these pitfalls:

Testing with a weak battery—always ensure the battery is fully charged.
Ignoring safety precautions—electrical systems can be dangerous if mishandled.
Misinterpreting readings—understand the voltage ranges specific to your vehicle.

When to Replace the Alternator

If your multimeter readings consistently fall outside the acceptable range, it’s likely time to replace the alternator. In my experience, ignoring these signs can lead to a dead battery or worse—a stranded vehicle. Trust the data, and don’t delay repairs if the alternator is faulty.

Checking an alternator with a multimeter is a straightforward process that can save you from unexpected breakdowns. By following these steps and understanding the nuances of voltage readings, you’ll be better equipped to diagnose and address alternator issues. Remember, a multimeter is your best friend when it comes to electrical troubleshooting—use it wisely, and you’ll keep your vehicle running smoothly for years to come.
