If you’ve ever struggled with creating precise angles or intricate patterns on a milling machine, you’re not alone. I’ve been there, staring at a workpiece, wondering how to achieve that perfect 30-degree cut or a complex contour. That’s where a milling machine rotary table comes in. It’s a game-changer for anyone looking to expand their machining capabilities. A milling machine rotary table is essentially a precision tool that allows you to rotate your workpiece or cutting tool around a vertical or horizontal axis, enabling you to perform operations like indexing, helical milling, and angular cuts with ease. In my experience, mastering this tool can take your machining projects to the next level, but it’s not without its learning curve.
What Exactly is a Milling Machine Rotary Table?

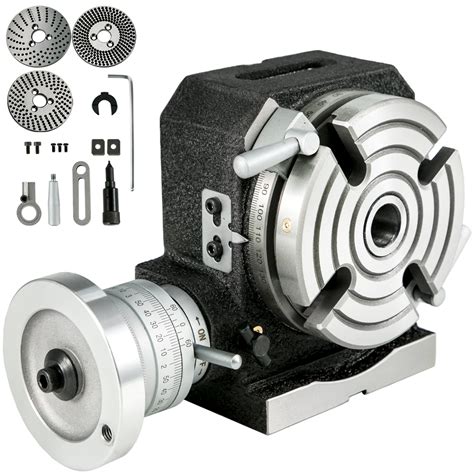

A milling machine rotary table is a versatile accessory designed to mount on your milling machine’s table. It provides a rotating platform that allows you to position your workpiece at precise angles or rotate it incrementally. This is crucial for tasks like drilling holes on a circular pattern, cutting gears, or creating complex 3D shapes. The table typically features a graduated dial or digital readout for accurate positioning, and some models even include a tailstock for supporting longer workpieces.

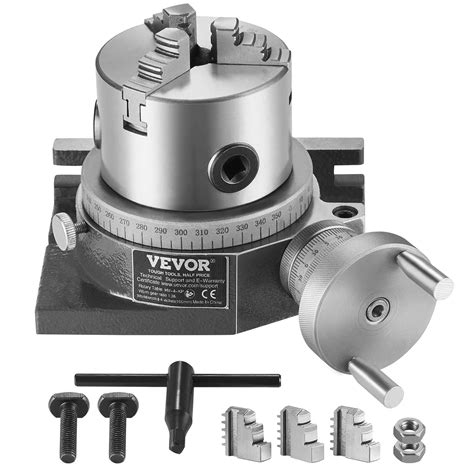

Here’s the thing: not all rotary tables are created equal. They come in various sizes, with different degrees of precision and features. For instance, a 4-inch rotary table might suffice for small-scale projects, while a 12-inch model is better suited for larger workpieces. The key is to choose one that matches your machine’s capabilities and your project requirements.
Why Use a Rotary Table?
The primary advantage of a milling machine rotary table is its ability to handle complex machining tasks that would otherwise be impossible or extremely time-consuming. For example, I once needed to drill a series of holes in a circular pattern on a metal plate. Without a rotary table, I would have had to manually reposition the workpiece for each hole, risking inaccuracies. With the rotary table, I simply locked it in place, set the angle, and let the machine do the work. The result? Perfectly aligned holes every time.
Another benefit is the ability to perform indexing, which involves rotating the table to specific angles for repetitive operations. This is particularly useful for creating symmetrical parts or patterns. In my experience, indexing with a rotary table is far more precise than trying to eyeball angles manually.
Choosing the Right Rotary Table
Selecting the right milling machine rotary table depends on several factors, including the size of your workpieces, the precision required, and your budget. Here’s a quick breakdown:
| Size | Best For | Pros | Cons |
|---|---|---|---|
| 4-inch | Small parts, hobbyists | Compact, affordable | Limited capacity |
| 6-inch | Medium-sized projects | Good balance of size and precision | Moderate cost |
| 12-inch | Large workpieces, industrial use | High capacity, robust | Expensive, bulky |
Honestly, if you’re just starting out, a 6-inch rotary table is a solid choice. It offers enough versatility for most projects without breaking the bank. That said, if you’re working on larger pieces or need industrial-grade precision, you’ll want to invest in a 12-inch model.
Setting Up Your Rotary Table
Proper setup is critical to getting the most out of your milling machine rotary table. Here’s a step-by-step guide:
- Mount the Table: Securely attach the rotary table to your milling machine’s table. Ensure it’s level and firmly clamped to avoid movement during operation.
- Align the Axis: Align the rotary table’s axis with the machine’s spindle. This ensures accurate rotation and prevents errors.
- Zero the Dial: Set the rotary table’s dial to zero. This is your reference point for all angular measurements.
- Secure the Workpiece: Use clamps or a vise to hold your workpiece firmly in place. Any movement can compromise precision.
⚠️ Note: Always double-check your setup before starting. A misaligned rotary table can lead to costly mistakes.
Common Applications
The versatility of a milling machine rotary table is one of its biggest strengths. Here are some common applications I’ve found it particularly useful for:
- Angular Milling: Cutting angles that aren’t possible with a standard milling setup.
- Helical Milling: Creating helical grooves or threads by combining rotation with linear movement.
- Gear Cutting: Producing gears with precise tooth profiles.
- Circular Drilling: Drilling holes in a circular pattern without repositioning the workpiece.

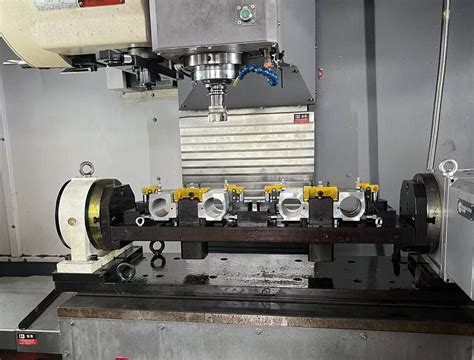

This is where it gets interesting: with a rotary table, you can even perform 4th axis machining, which involves rotating the workpiece while the cutting tool moves along the X, Y, and Z axes. This opens up a whole new world of possibilities for complex parts.
Tips for Success
Using a milling machine rotary table effectively requires practice and attention to detail. Here are a few tips I’ve picked up along the way:
- Take It Slow: High speeds can lead to inaccuracies. Start with slower feeds and speeds until you’re comfortable.
- Use a Center Finder: For precise centering of your workpiece, a center finder is invaluable.
- Regular Maintenance: Keep your rotary table clean and lubricated to ensure smooth operation and longevity.
💡 Note: If you’re working with hard materials, consider using carbide tools for better durability and performance.
In my experience, the milling machine rotary table is one of those tools that, once you start using it, you wonder how you ever managed without it. Whether you’re a hobbyist or a professional machinist, mastering this tool can significantly enhance your capabilities. It’s not just about making your work easier—it’s about pushing the boundaries of what’s possible in your projects. So, take the time to learn its ins and outs, experiment with different techniques, and see where it takes you. The precision and versatility it offers are well worth the effort.
