Replacing Thermal Coupling On Water Heater

If you've ever been jolted awake by a cold shower, you know the frustration of a water heater on the fritz. In my years of tinkering with home systems, I’ve found that one common culprit is a faulty thermal coupling. This small but critical component ensures your water heater operates safely and efficiently. Replacing thermal coupling on water heater isn’t just a DIY project—it’s a skill that can save you from unnecessary repairs or even hazardous situations. Here’s the thing: it’s not as daunting as it sounds, but it does require precision and the right tools.

Table of Contents

Understanding the Role of a Thermal Coupling

Before diving into the replacement process, it’s crucial to understand what a thermal coupling does. Essentially, it’s a safety device that monitors the temperature of the water heater’s burner. If the pilot light goes out, the thermal coupling shuts off the gas supply, preventing a dangerous buildup of gas. In my experience, a malfunctioning thermal coupling often manifests as a pilot light that won’t stay lit or a burner that fails to ignite. This is where replacing thermal coupling on water heater becomes necessary.

When to Replace the Thermal Coupling

Not every issue with your water heater requires replacing the thermal coupling, but certain signs point directly to it. For instance, if you’ve cleaned the pilot light and checked for gas flow but the pilot still won’t stay lit, the thermal coupling is likely the problem. Another telltale sign is a burner that ignites inconsistently or not at all. Honestly, diagnosing this issue correctly can save you time and money, as other components like the thermocouple or gas valve might be mistakenly blamed.

Tools and Materials Needed

Before you start replacing thermal coupling on water heater, gather the necessary tools and materials. Here’s what you’ll need:

New thermal coupling (ensure it’s compatible with your water heater model)
Adjustable wrench or pliers
Screwdriver (flathead and Phillips, depending on your unit)
Emery cloth or fine-grit sandpaper
Gas leak detector solution (soapy water works well)

Step-by-Step Guide to Replacing Thermal Coupling on Water Heater

Turn Off the Gas Supply: Safety first. Locate the gas valve on the water heater and turn it to the “Off” position. This prevents any gas from flowing while you work.

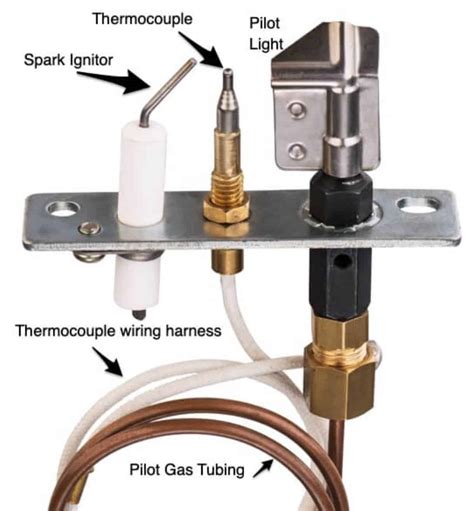

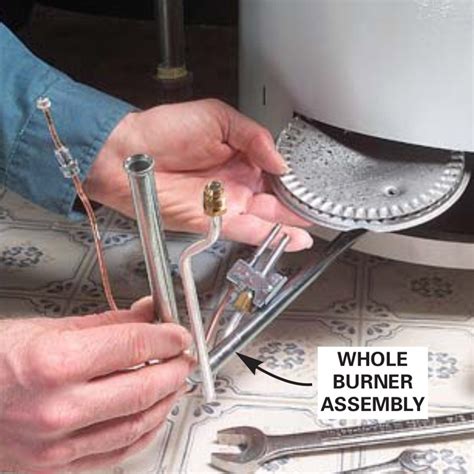

Remove the Old Thermal Coupling: Access the thermal coupling by removing the outer panel of the water heater. Use a screwdriver to detach the coupling from the gas valve and pilot assembly. Be gentle to avoid damaging nearby components.
Clean the Connection Points: Before installing the new thermal coupling, clean the connection points on the gas valve and pilot assembly with emery cloth or sandpaper. This ensures a secure fit and proper functionality.
Install the New Thermal Coupling: Attach the new thermal coupling to the gas valve and pilot assembly. Tighten the connections with an adjustable wrench, but be careful not to overtighten, as this can cause damage.
Test for Gas Leaks: Once the new thermal coupling is in place, turn the gas supply back on. Apply soapy water to the connections and look for bubbles, which indicate a leak. If you find any, tighten the connections further or recheck the installation.
Relight the Pilot Light: Follow the manufacturer’s instructions to relight the pilot light. If it stays lit, you’ve successfully replaced the thermal coupling.

⚠️ Note: Always double-check your work before turning the gas back on. A small mistake can lead to a gas leak, which is both dangerous and costly to fix.

Common Mistakes to Avoid

Replacing thermal coupling on water heater is straightforward, but there are a few pitfalls to watch out for. One common mistake is using the wrong size or type of thermal coupling. Always verify compatibility with your water heater model. Another error is overtightening the connections, which can strip the threads or damage the coupling. Lastly, skipping the gas leak test is a recipe for disaster. Even if everything seems secure, always test for leaks to ensure safety.

When to Call a Professional

While replacing thermal coupling on water heater is a manageable DIY task, there are times when it’s best to call a professional. If you’re unsure about any step, uncomfortable working with gas, or if the problem persists after replacement, it’s worth hiring a licensed technician. Gas appliances can be hazardous, and it’s better to be safe than sorry.

Replacing thermal coupling on water heater is a task that, once mastered, can save you from the inconvenience of cold showers and potential safety hazards. By understanding the role of the thermal coupling, gathering the right tools, and following the steps carefully, you can tackle this repair with confidence. Remember, precision and safety are key—take your time, double-check your work, and don’t hesitate to seek professional help if needed. With this knowledge, you’re well-equipped to keep your water heater running smoothly for years to come.
